Olympus Vanta Element S (PIN) Handheld XRF Analyzer Series menyediakan analisis unsur untuk identifikasi dan penyortiran tingkat paduan yang cepat dengan harga yang terjangkau. Seri ini tersedia dalam dua model hemat biaya:
- Vanta Element analyzer untuk ID paduan yang terjangkau
- Vanta Element-S analyzer untuk ID paduan yang terjangkau, termasuk deteksi elemen ringan untuk magnesium (Mg), aluminium (Al), silikon (Si), belerang (S), dan fosfor (P) Lihat Detail
Kedua model memiliki fitur ID tingkat cepat dan perbandingan kualitas di layar yang jelas untuk mempercepat pengujian logam untuk pemilahan skrap, pembuatan logam, dan analisis logam mulia.
Antarmuka pengguna seperti ponsel cerdas mudah digunakan dan dipelajari, membantu merampingkan pelatihan pengguna dan proses penyortiran.
Olympus Vanta Element S (PIN) Handheld XRF Analyzer
Rugged
- IP54 rated to resist dust and moisture
- Drop tested (MIL-STD-810G) to help protect from the occasional drop or jostle
- Thick Kapton® window to protect the analyzer when testing sharp objects
Modern
- Fast alloy identification for sorting powered by Olympus’ proven Axon Technology™
- Wireless connectivity to a local network or the Olympus Scientific Cloud™ (optional)
- See results and share data on your smartphone with the Vanta Mobile App
Easy to Use
- On-screen grade comparison and fast results for high throughput
- Smartphone-like UI is easy to learn and easy to use
- Affordable pricing

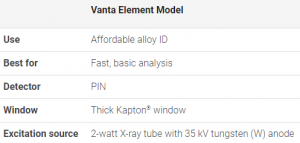

Vanta Element S (PIN) Handheld XRF Analyzer Specifications
| Vanta Element Model | Vanta Element-S Model | |
|---|---|---|
| Dimensions (W x H x D) | 8.3 x 28.9 x 24.2 cm (3.25 x 11.4 x 9.5 in.) | |
| Weight | 1.54 kg (3.39 lb) with battery, 1.32 kg (2.91 lb) without battery | |
| Excitation Source | 2-watt X-ray tube with 35 kV tungsten anode | 4-watt X-ray tube with 50kV silver (Ag) anode |
| Primary Beam Filtration | Fixed aluminum filter | |
| Detector | Silicon PIN detector | Silicon drift detector (SDD) |
| Power | Removable 14.4 V Li-Ion battery or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max | |
| Display | 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control | |
| Operating Environment | Temperature: −10 °C to 45 °C (14 °F to 113 °F) at 100% duty cycle Humidity: 10% to 90% relative humidity noncondensing | |
| Drop Test | Military Standard 810-G 4-foot (1.3 M) drop test | |
| IP Rating and Detector Shutter | IP54: dust protected and protected against water splashing from all directions | |
| Operating System | Linux® | |
| Data Storage | microSD™ slot with removable 1 GB Industrial SD card included | |
| USB | Two USB 2.0 type A host ports for accessories such as wireless LAN, Bluetooth®, and USB flash drives. One USB 2.0 type mini-B port for connection to computer. | |
| Wireless LAN | Supports 802.11 b/g/n (2.4 GHz) via optional USB adaptor | |
| Bluetooth | Supports Bluetooth® with an optional USB adaptor | |
| Warranty | One-year warranty | |
| Optional Accessories | Field Stand, Soil Foot, and Holster | |
