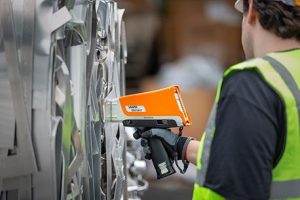

Olympus Vanta Element S (SDD) Handheld XRF Analyzer Series memiliki kinerja dan portabilitas yang Anda butuhkan untuk pemilahan skrap cepat atau ID logam. Model Vanta Element dan Vanta Element-S menawarkan identifikasi grade yang cepat dengan perbandingan grade yang jelas di layar untuk pengoperasian yang mudah saat menguji logam.
Seri Vanta Element adalah rangkaian alat analisa XRF genggam tingkat pemula yang hemat biaya. Pilih Vanta Element analyzer untuk ID paduan atau Vanta Element-S analyzer untuk analisis elemen ringan cepat dengan harga terjangkau.
Vanta Element S Handheld XRF Analyzer
✓ Stainless Steel
✓ Copper Alloys
✓ Low-Alloy Steel
✓ Nickel Alloys
✓ Titanium Alloys
✓ Aluminum Alloys
✓ Precious Metals
✓ Light Element Analysis
(Mg, Al, Si, S, and P)
Advanced XRF Analyzer Features
Seri Vanta Element mencakup fitur konektivitas untuk membantu merampingkan proses daur ulang dan kontrol kualitas besi tua Anda.
Accurate and Repeatable Results
- Vanta™ electronics
- Axon Technology™ stability and count rate
Convenient Data Management
- Wireless connectivity (optional) for easy data transfer to a network folder
- Cloud data storage and real-time remote data viewing using the Olympus Scientific Cloud™
- Direct export to a USB drive
- 1 GB Industrial microSD™ card for storing results
Rugged, Affordable Handheld XRF
Built for demanding environments, the analyzer delivers a lower cost of ownership.
- IP54 rated for protection against dust and moisture
- Drop tested (MIL-STD-810G) to protect against falls and reduce the need for costly repairs
- Rated for continuous testing from -10 °C to 45 °C (14 °F to 113 °F)
- Stainless-steel faceplate for wear protection
- Easy, toolless window replacement

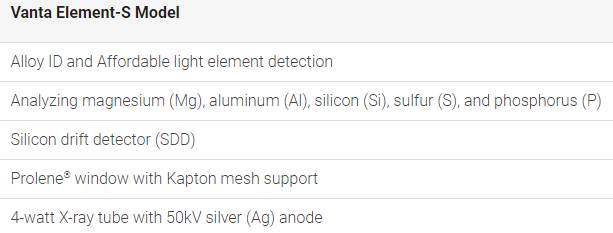

Vanta Element Handheld XRF Analyzer Specifications
| Vanta Element Model | Vanta Element-S Model | |
|---|---|---|
| Dimensions (W x H x D) | 8.3 x 28.9 x 24.2 cm (3.25 x 11.4 x 9.5 in.) | |
| Weight | 1.54 kg (3.39 lb) with battery, 1.32 kg (2.91 lb) without battery | |
| Excitation Source | 2-watt X-ray tube with 35 kV tungsten anode | 4-watt X-ray tube with 50kV silver (Ag) anode |
| Primary Beam Filtration | Fixed aluminum filter | |
| Detector | Silicon PIN detector | Silicon drift detector (SDD) |
| Power | Removable 14.4 V Li-Ion battery or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max | |
| Display | 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control | |
| Operating Environment | Temperature: −10 °C to 45 °C (14 °F to 113 °F) at 100% duty cycle Humidity: 10% to 90% relative humidity noncondensing | |
| Drop Test | Military Standard 810-G 4-foot (1.3 M) drop test | |
| IP Rating and Detector Shutter | IP54: dust protected and protected against water splashing from all directions | |
| Operating System | Linux® | |
| Data Storage | microSD™ slot with removable 1 GB Industrial SD card included | |
| USB | Two USB 2.0 type A host ports for accessories such as wireless LAN, Bluetooth®, and USB flash drives. One USB 2.0 type mini-B port for connection to computer. | |
| Wireless LAN | Supports 802.11 b/g/n (2.4 GHz) via optional USB adaptor | |
| Bluetooth | Supports Bluetooth® with an optional USB adaptor | |
| Warranty | One-year warranty | |
| Optional Accessories | Field Stand, Soil Foot, and Holster | |
