Total Station Topcon GPT 7002

Jual Total Station Topcon GPT 7002 Bekas Bergaransi Harga Murah !

Akurasi 2 Detik Bertehnologi Canggih
Windows®CE.NetTM is introduced.
An expansive shading show + touch board
Constant 3D see
(Tuned to developments of the framework, 3D positions are graphically show)
Little breadth stick point
Information send and get work utilizing the Internet (email).
Flexible
(Transmission and gathering by means of a CF card, USB and RS-232C)

SKU: GPT7002 Kategori:
Berbagi Kebaikan

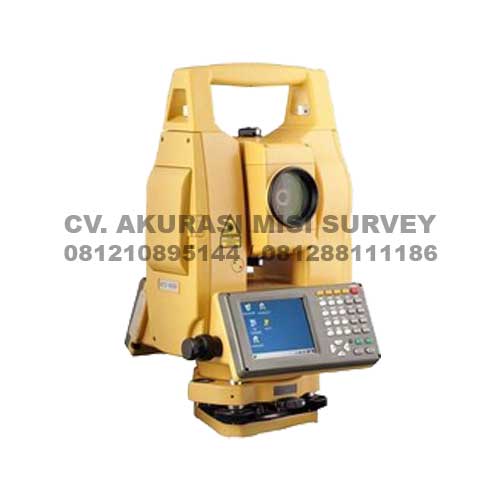

Jual Total Station Topcon GPT 7002

Jual Total Station Topcon GPT 7002 merupakan sebuah alat survey yang bisa mambantu mempercepat proses pengukuran lahanan dan tambang atau bangunan dengan akurasi 2 detik dan kualitas jarak laser yang sangat jauh sekali sehingga memperpemudah membidik jarak sejauh apapun yang anda mau. di tambah alat ini memang alat jadul tapi teknologi yang di gunakan jangan salah sangat canggih dan unggul di banding dengan total station yang sekarang.

Harga Total Station Topcon GPT 7002

Masalah Harga Total Station Topcon GPT 7002 karena sudah di discontinue alias ga ada barunya hanya ada second / bekas jika sedang ada dan untuk informasi ketersediaan bisa hubungi kontak cs kami klik saja DISINI dengan segudang kecanggihan yang tidak sebanding dengan harga yang di berikan sangat lah murah beli alat second dengan jaminan garansi resmi dan lama.

Segera dapatkan alat total station topcon gpt 7002 dengan harga murah !

jual total station topcon gpt 7002

Fitur Total Station Topcon GPT 7002

An adaptable across the board non-crystal add up to station that mounts a Windows®CE.NetTM-based information gathering capacity in a heartbeat add up to station that is exact and without mistaken sign.

Information gatherer capacity and application program are standard arrangements.

  • Windows®CE.NetTM is introduced.
  • An expansive shading show + touch board
  • Constant 3D see
  • (Tuned to developments of the framework, 3D positions are graphically shown)
  • Little breadth stick point beat
  • Information send and get work utilizing the Internet (email).
  • (A correspondence modem sold available can be utilized)
  • Flexible interfaces
  • (Transmission and gathering by means of a CF card, USB and RS-232C)

Point direct is introduced

Spesifikasi Total Station Topcon GPT 7000 Series

GPT-7001 GPT-7002 GPT-7003 GPT-7005
TELESCOPE
Length 150mm
Objective Lens Dia. 45mm (EDM 50mm)
Magnification 30 ×
Image Erect
Field of View 1°30 ×
Resolving Power 2.8″
Min. Focus Distance 1.3m (4.29 ft.)
DISTANCE MEASUREMENT
Measuring Range
Non-prism mode
In low light condition and
without sun glare on target
(Target: White surface)
1.5 to 250m (5 to 820 ft.)
Prism Mode
1 prism (Condition 1)
3,000m (9,900 ft.)
Condition 1: Sight haze with visibility about 20km (12.5 miles) moderate sunlight with light heat shimmer.
Measurement Accuracy
 Non-prism Mode (Diffusing Surface)
  1.5m or more (5 ft. or more) ± (5mm) m.s.e.
 Prism Mode to 25m (to 82 ft.) ± (3mm+2ppm・D*) m.s.e.
  25m or more (82 ft. or more) ± (2mm+2ppm・D*) m.s.e.
Least Count in Measurement
  Fine Measurement Mode 1mm (0.005 ft.)/0.2mm (0.001 ft.)
  Coarse Measurement Mode 10mm (0.02 ft.)/1mm (0.005 ft.)
  Tracking Measurement Mode 10mm (0.02 ft.)
Measurement Display 11 digits: max. display 9999999.9999
Measuring Time
  Fine Measurement Mode 1mm: Approx. 1.2 sec. (Initial 3.0 sec.)
0.2mm: Approx. 3.0 sec. (Initial 4.0 sec.)
  Coarse Measurement Mode Approx. 0.5 sec. (Initial 2.5 sec.)
  Tracking Measurement Mode Approx. 0.3 sec. (Initial 2.5 sec.)
Atmospheric Correction Range -999.9ppm to +999.9ppm, in 0.1ppm increments
Prism Constant Correction Range -99.9mm to +99.9mm, in 0.1mm increments
ANGLE MEASUREMENT
Method Absolute Reading
Detecting System H: 2 sides V: 2 sides
Minimum Reading 0.5″ / 1″
(0.1/0.5mgon)
1″ / 5″
(0.2/1mgon)
Accuracy** 1″
(0.3mgon)
2″
(0.6mgon)
3″
(1.0mgon)
5″
(1.5mgon)
Diameter of Circle 71mm
TILT CORRECTION
Type Dual axis
Method Liquid type
Compensating Range ±4′
Correction Unit 1″ (0.1mgon)
COMPUTER UNIT
OS Microsoft Windows® CE.Net 4.2
Processor 177 Mhz Hitachi SH7750R
Memory
RAM
ROM
64MB
64MB Flash Disk (Internal)
(A portion is used for pre-installed programs and data management functions)
Display Unit 320×240 (QVGA) dots Graphic LCD TFT color
display with back lights and touch panel function
2 sides 1 side
Card System CompactFlashTM Card (Type I/II)
INTERFACE
Serial I/F Port RS-232C (6 pin)
USB (type B) for ActiveSync®
OTHERS
Instrument Height 182mm (7.2 in.)
Level Sensitivity
Circular Level
Plate Level
10′ /2mm
30′ /2mm
Optical Plummet
 Magnification 3 ×
 Focusing Range 0.5m to infinity
 Image Erect
Point Guide Provided
Dimension
 GPT-7001/7002/7003 343mm(H) × 245mm(W) × 219mm(L)/13.5(H) × 9.6(W) × 8.6(L)in.
 GPT-7005 343mm(H) × 245mm(W) × 199mm(L)/13.5(H) × 9.6(W) × 7.8(L)in.
Weight
 Instrument (with battery) GPT-7001/7002/7003: 6.5kg(14.3 lbs.) GPT-7005: 6.4kg (14.1 lbs.)
 Plastic Carrying Case 4.7kg (10.3 lbs.)
Durability
 Protection against water and dust IP54 (Based on the standard IEC60529)
 Ambient Temperature – 20°C to +50°C (-4°F to +122°F)
Laser Class Class 1 (for disntace measurement)
Class 2 (Laser Pointer On)
ON-BOARD LITHIUM-ION BATTERY BT-61Q (This battery does not contain mercury.)
Output Voltage DC7.4V
Capacity 4,400mAh
 Maximum operating time at +20°C (+68°F)
 Including distance measurement Approx. 5.0 hours
 Angle measurement only Approx. 10 hours
Weight 0.2kg (0.4 lbs.)
BATTERY CHARGER BC-30
Input Voltage AC100-240V
Frequency 50 / 60Hz
Recharging Time
(at +20°C/+68°F)
4 hours
Ambient Temperature Range +10°C to +40°C (+50°F to 104°F)
Weight 0.15kg (0.3 lbs.)

Jual Total Station Topcon GPT 7002 dengan Akurasi 2 detik dengan harga murah, diskon dan cari produk TOPCON lainnya dari kelompok Total Station. Gratis ongkos pengiriman guna wilayah Jakarta dan bisa dikirim ke semua Indonesia. Dapatkan melulu di toko online www.akurasimisisurvey.co.id, melakukan pembelian barang online gampang dan aman.

Jual Total Station Topcon GPT 7002 Murah Hanya di CV. AKURASI MISI SURVEY.

Anda akan mendapatkan type harga jual total station Topcon GPT 7002 terbaik dan tercanggih dengan begitu kami juga memberikan kemudahan dan proses cepat dalam transaksi. Setiap customer yang beli perlengkapan survey Total Station di www.akurasimisisurvey.co.id telah banyak yang merekomendasikan dan terbukti aman dari penipuan. Kami juga berikan spesial potongan harga dan bonus premium di setiap pembelian Total Station. Kami memberikan jaminan kepuasan dengan mengejar alat survey Total Station dengan proses yang simple dan secure. Banyak pilihan Total Station di CV. AKURASI MISI SURVEY kami jamin 100% anda tidak akan kecewa. Kami bisa kirimkan Total Station ke seluruh indonesia dengan pengiriman aman dan cepat sampai.
