Kebutuhan alat survey yang akurat kokoh serta stabil ketika di lapangan ini sangat menjadi perimadona tersendiri bagi surveyor dan kontraktor di lapangan, oleh karena itu kami dari cv. ams menghadirkan total station sokkia cx 103 baru atau bekas dengan kondisi normal terbaik.

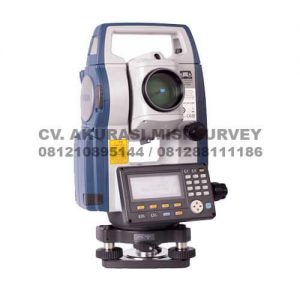

Jual Beli Total Station Sokkia CX 103 Bekas Baru Bergaransi
Total Station Sokkia CX 103 bisa nyampe pengukuran survey yang sangat luar biasa dalam waktu singkat.
Total Station Sokkia CX 103 di tambah fitur terobosan teknologi seperti pengukuran canggih sudut, cepat dan EDM terbaik, jarak jauh komunikasi nirkabel Bluetooth, dan sistem keamanan TsShield.
Total Station Sokkia CX 103 Bekas memungkinkan Anda untuk mengambil pengukuran survey lebih cepat dan dengan lebih presisi harga terjangkau dari sebelumnya.
Features Total Station Sokkia CX 103 Reflectorless
- 3-second accuracy
- 10,000-point internal memory
- 1,640 foot range
- Long-range Bluetooth
- Laser plummet features five levels of brightness
- Coaxial laser pointer
- USB and RS232 serial port
- Advanced security and maintenance with TSshield
- Trigger key for taking measurements quickly
- 36-hour battery life
- Water resistant and dustproof to IP-66
- Dual graphic LCD display
Specifications Total Station Sokkia CX 103 Reflectorless
| General | |
| Weight | 12.3 lbs (5.6 kg) |
| Dimensions | 7.5 in x 7.1 in x 13.7 in (191 mm x 181 mm x 348 mm) |
| Warranty | 1-year manufacturer’s warranty |
| Protection Class | IP66 (protected against access to hazardous parts, dust-tight; protected against powerful water jets and heavy seas) |
| Tripod Thread | 5/8 x 11 in. |
| Auto Shut Off | 7.5 in x 7.1 in x 13.7 in (191 mm x 181 mm x 348 mm) |
| Internal Memory | 7.5 in x 7.1 in x 13.7 in (191 mm x 181 mm x 348 mm) |
| Tribrach | fixed |
| Guide Light | green and red LED, Working range: 4.3 ft to 492 ft (1.3 m to 150 m) |
| Angle Measurement | |
| Measuring Method/Reading System | coaxial phase shift measuring system |
| Minimum Reading | 1-second/5-second |
| Accuracy | 3-second |
| Distance Measurement | |
| Unit of Measure (distance display) | m/ft/in. |
| EDM Accuracy (Precision) | reflectorless: (3 + 2ppm x D) mm; Reflective sheet: (3 + 2ppm x D) mm; SP/CP prism: (2 + 2ppm x D) mm |
| Minimum Reading | 0.01 ft/ 1/8 in. |
| Tilt Sensor/Compensator | |
| Range | ±6 minutes |
| Type | dual axis liquid tilt |
| Battery/Power | |
| Power Source | Li-ion rechargeable battery |
| Battery Life | about 36 hours |
| Battery Life Alert | yes |
| Voltage | 7.2V |
| Optical Plummet | |
| Image | erect |
| Magnification | 3x |
| Level | |
| Circular Bubble Vial | 10 min. per division/2mm |
| Electronic Level | 6 arcseconds |
| Telescope | |
| Length of Tube | 6.7 in (171 mm) |
| Image | erect |
| Diameter of Objective Lens (Aperture) | 1.8 in (45 mm) |
| Magnification | 30x |
| Field of View | 1 degree 30 arcmin |
| Resolving Power | 2.5 arcmin |
| Minimum Focus Distance | 4.3 ft (1.3 m) |
| Reticle Illumination | 5 brightness levels |
| Reflectorless | yes |
| Display and Keypad | |
| Type | LCD graphic display |
| Sides | dual |
| Keys | 25 |
| Backlight | yes |
| Pixels | 192 x 80 |
| Temperature | |
| Operating | -4ºF to 122ºF (-20ºC to +50ºC) |
| Storage | -4ºF to 122ºF (-20ºC to +50ºC) |
| Applications | |
| Surveying and Construction | yes |
| Mapping and GIS (geographic information systems) | yes |
| Utilities | yes |
| Environment Studies | yes |
| Geomarking | yes |
| Archaeology | yes |
| Accident Reconstruction | yes |
| Measurement Range (under fair weather conditions) | |
| Single Prism | 4.27 ft. to 16,400 ft. (1.3 m to 5000 m) |
| Triple Prism | up to 16,400 ft. (5,000m) |
| No Prism | 1.0 ft. to 1,640 ft. (0.3m to 500m) |
| Mini Prism | CP01: 8,200 ft. (1.3m to 2,500m); OR1PA: 1,640 ft. (1.3m to 500m) |
| Reflector Sheet | 4.3 ft. to 1,640 ft. (1.3m to 500m) |
| Functions | |
| Coordinate Measurement Point | yes |
| Angle and Distance Stake Out | yes |
| Stake Out Line | yes |
| Offsets | yes |
| Missing Line | yes |
| Remote Elevation | yes |
| Resection | yes |
| Area Calculation | yes |
| Measurement Time | |
| Fine | 0.9s (initial 1.7s) |
| Rapid | 0.7s (initial 1.4s) |
| Tracking | 0.3 s (initial 1.4s) |
| Laser Plummet | |
| Accuracy | 1 mm or less |
| Class | Class 2 laser |
| Wavelength | 635nm±10nm |
| Laser Pointer | |
| Class | Coaxial red laser using EDM beam |
| Interface | |
| Bluetooth | communication range: up to 980 ft (300 m) |
| USB | 8 GB USB memory stick and USB device port |
| Pin Port | RS232C |
Kelengkapan Standart :
2x Alumunium Tripod
1x Prisma Polygon
1x Prisma Single
1x Range Pole
Jual Beli Total Station Sokkia CX 103 Baru Bekas Reflectorless harga murah dan temukan produk terbaik lainnya di menu kategori Total Station dan brand terbaik Sokkia dapatkan bonus Gratis biaya ongkir untuk wilayah Jabodetabek dan bisa dikirim ke seluruh Indonesia. Dapatkan produk alat survey terbaik hanya di toko online akurasimisisurvey.co.id, belanja online atau offline alat ukur dan alat survey mudah dan aman terpercaya sejak 2016.
