Deskripsi

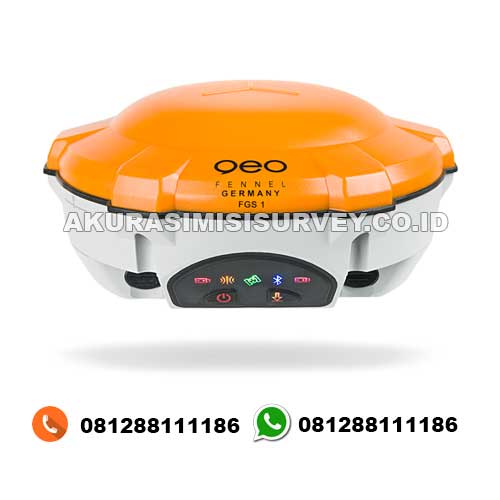

Jual GPS Geodetik GEO-FENNEL FGS-1 GNSS RTK
Satu Set GPS Geodetik Unik untuk aplikasi multiguna Jual GPS Geodetik GEO-FENNEL FGS-1 adalah receiver kuat yang dirancang untuk lingkungan yang menantang yang terintegrasi ke dalam perangkat ringkas yang ringan dan sangat portabel.
GPS Geodetik GEO-FENNEL FGS-1 dapat melacak semua rasi bintang GNSS yang bekerja saat ini. Dengan menggunakan algoritma yang unik itu dapat beroperasi dalam mode RTK menggabungkan semua sinyal konstelasi GNSS atau dengan menggunakan sinyal konstelasi GNSS tunggal seperti GLONASS atau BeiDou. Kemampuan anti-interferensi yang kuat dari penerima memungkinkan untuk bekerja di lingkungan apa pun. GPS Geodetik GEO-FENNEL FGS-1 mengintegrasikan papan GNSS canggih, Bluetooth®, opsional UHF (Rx & Tx) ke dalam sistem yang kompak. Desain cerdas memposisikan FGS 1 di antara receiver paling ringan dan paling ringkas yang tersedia saat ini. Sistem ini terbuka untuk aplikasi pihak ketiga dan didukung oleh MicroSurvey FieldGenius dan aplikasi lapangan Carlson Surv-CE.
Fitur GPS Geodetik GEO-FENNEL FGS-1
Features
- High speed processing
- Support for both post-processing and kinematic
- Processing ability separate or to be combined with GPS, GLONASS and BeiDou
- Supports downloads & use of precise ephemeris
- Generation of various reports
- User friendly
Supplied with
GPS SYSTEM FGS 1 COMPLETE SET
ART.-NO. 751000
- 2 GNSS Antenna FGS 1
- 1 MicroSurvey Fieldgenius Software
- 1 Fieldcontroller DC5
- 1 Postprocessing Software
- 2 USB-Cable for FGS 1
- 2 RS-232 Cable for FGS 1
- 1 Measuring Tape 3 m
- 1 Tribrach AJ 10 black
- 1 Tribrach Adaptor AL 11-D black with optical plummet
- 1 Container
- 1 Operators‘ manual
GPS SYSTEM FGS 1 NETZWERK-SET
ART.-NO. 750100
- 1 GNSS Antenna FGS 1
- 1 MicroSurvey Fieldgenius Software
- 1 Fieldcontroller DC5
- 1 Postprocessing Software
- 1 USB-Cable for FGS 1
- 1 RS-232 Cable for FGS 1
- 1 Measuring Tape 3 m
- 1 Container
- 1 Operators‘ manual
Spesifikasi GPS Geodetik GEO-FENNEL FGS 1
Technical data
Signal Tracking | |
256 channels with simultaneously tracked satellite signals: | |
– GPS | L1 C/A, L1/L2P, L5 |
– GLONASS | L1/L2 |
– BeiDou | B1, B2, B3 |
– Galileo | Yes, but not activated |
– SBAS | WAAS, EGNOS, MSAS |
Performance Specifications | |
Cold start | <50s |
Warm start | <30s |
Initialization time | typically <10s |
Initialization reliability | typically >99,9% |
Signal reacquisition | <2s |
Positioning Specifications | |
Post processing static | |
– horizontal | 2,5 mm + 0,5 ppm RMS |
– vertical | 5,0 mm + 0,5 ppm RMS |
Real time kinematic | |
– horizontal | 10 mm + 0,5 ppm RMS |
– vertical | 20 mm + 0,5 ppm RMS |
E-RTK (<100 km) | |
– horizontal | 0,20 m + 1 ppm RMS |
– vertical | 0,40 m + 1 ppm RMS |
Code differential GNSS positioning | |
– horizontal | 0,25 m + 1 ppm RMS |
– vertical | 0,50 m + 1 ppm RMS |
SBAS | typically <1 m 3D RMS |
Stand-Alone | <1,5 m RMS |
Communication | |
1 Serial port (7 Pin Lemo), Baud rates up to 921 600 bps | |
Radio modem (optional) | Tx/Rx with full frequency rang from 410 – 470 MHz |
– transmit power | 0.5 – 2W adjustable |
Positioning update rate | 1 Hz, 2 Hz, 5 Hz, 10 Hz |
5 LED Indicating lights | Power, satellite tracking, differential data and data recording |
Bluetooth®; V 2.X protocol, work compatible with Windows 7®, Windows mobile® and Android® | |
Data Format | |
Data inputs / outputs | |
– Correction data I/O | RTCM 2.x, 3.x, CMR & CMR+ (GPS only) |
Position data outputs | |
– ASCII | NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST, PJK, PTNL |
geo-FENNEL Binary update to 20 Hz |
Download Brosur Spesifikasi Jual GPS Geodetik GEO-FENNEL FGS-1 GNSS RTK Lengkapnya >> KLIK DISINI <<
