GPS Geodetik CHC i50 GNSS RTK

Category:

GPS Geodetik CHC i50 GNSS RTK Tracking GPS, GLONASS, Galileo, BeiDou and QZSS signals
The embedded 624-channel GNSS technology enhances reliability and performance to ensure accurate measurements. It allows for fast signals tracking and quick RTK fixed solution to improve productivity and reduce survey time in the field.

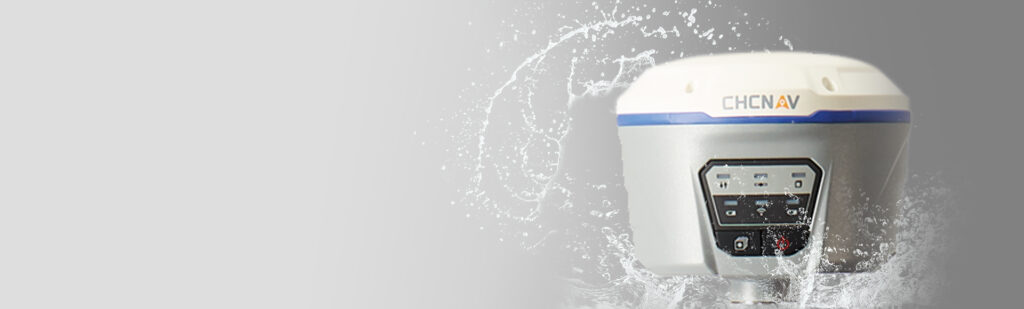

GNSS CHC i50

Jual GPS Geodetik CHC i50 GNSS RTK

Integrated NTRIP client, internal Rx/Tx UHF and external radio modes
May your project conditions change during your project, the preset survey modes are easy to select or switch directly on the i50 GNSS receiver. Your favorite RTK survey modes is always saved and start automatically when the receiver starts saving unnecessary set up time.

Fitur GPS Geodetik CHC i50

  • 432 Saluran Penuh GNSS
  • Konektivitas yYang Diperluas
  • Bluetooth, Wifi, 4G, dan Modem Radio UHF
  • Mode Kerja Yang Fleksibel
  • Kasar dan Ringkas
  • Tenaga Ekstra Dengan Baterai Ganda dan Dapat Ditukar

Spesifikasi GPS Geodetik CHC i50 Akurat

KARAKTERISTIK GNSS
Saluran : 432
GPS : L1, L2, L2C, L5
Glonass : L1, L2
BeiDou : B1, B2, B3
SBAS : L1
QZSS : L1, L2, L5

AKURASI GNSS
Real time kinematics (RTK) :
Horisontal: 8 mm + 1 ppm RMS
Vertikal: 15 mm + 1 ppm RMS
Waktu inisialisasi: <10 s Keandalan inisialisasi:> 99,9%
Post-processing kinematics (PPK):
Horisontal: 3 mm + 1 ppm RMS
Vertikal: 5 mm + 1 ppm RMS
Post-processing static:
Horizontal: 3 mm + 0.5 ppm RMS
Vertical: 5 mm + 0.5 ppm RMS
Code differential:
Horizontal: 0.4 m RMS
Vertical: 0.8 m RMS
Autonomous:
Horizontal: 1.5 m RMS
Vertical: 3.0 m RMS
Positioning rate:
Up to 10 Hz
Ti me to first fix:
Cold start: < 45 s
Hot start: < 10 s
Signal re-acquisition: < 1 s

PERANGKAT KERAS
Size (L × W × H) : 140 mm x 130 mm x 106 mm(5.5 in × 5.1 in × 4.2 in)
Weight : 1. 29 kg (2.8 lb)
Environment :
Operating: -40 °C to +65 °C (-40 °F to +149 °F)
Storage: -40 °C to +75 °C (-40 °F to +167 °F)
Humidity : 95%
Ingress protection : IP67 waterproof and dustproof, protected from temporary immersion to depth of 1 m
Shock : Survive a 2-meter pole drop
Tilt sensor : EBubble leveling
Front panel : 6 status LED

SERTIFIKASI
CE Mark

KOMUNIKASI DAN PENYIMPANAN DATA
Network modem :
Integrated 4G modem
LTE (F DD): B1, B2, B3, B4, B5, B7, B8, B20
DC-HSPA+/HSPA+/HSPA/UMTS: B1, B2, B5, B8
EDGE/GPRS/GSM 850/900/1800/1900 MHz
Wi-Fi : 802.11 b/g/n, access point mode
Bluetooth : v4.1
Ports :
1 x 7-pin LEMO port (external power, RS-232)
1 x USB 2.0 port (data download, firmwareupdate)
1 x UHF antenna port (TNC female)
UHF radio :
Standard Internal Rx/Tx: 410 MHz to 470 MHz
Transmit Power: 0.5 W to 2 W
Protocol: CHC, Transparent, TT450
Link rate: 9600 bps to 19200 bps
Range: Typical 3 km to 5 km
Data formats :
RTCM 2.x, RTCM 3.x, CMR input and output
HCN, HRC, RINEX 2.11, 3.02
NMEA 0183 output
NTRIP Client, NTRIP Caster
Data storage :
8 GB internal memory

Kelengkapan GNSS Receiver CHC i50 :

1x Base
1x Rover
1x Controller
1x Radio Eksternal
Garansi 12 Bulan

Bonus DKI Jakarta Gratis Training Dan Onkos Kirim*

Dapatkan Harga GPS Geodetik CHC i50 Terbaik Hubungi Marketing Kami Sekarang.
