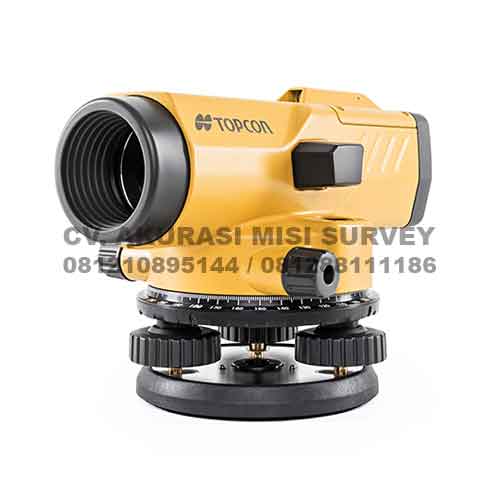

Automatic Level Topcon ATB3

Jual Automatic Level / Waterpass / Auto Level Topcon ATB3

28x Magnifications
Rapid, Accurate, and Stable Automatic Compensation
Ultra-Short 20cm (7.9 in.) Focusing
All-Weather Dependability
Clampless, Endless Fine Horizontal Adjustments

SKU: ATB3 Category:

Jual Waterpass / Automatic Level /Auto Level TOPCON ATB3

Jual Waterpass / Automatic Level /Auto Level TOPCON ATB3 merupakan alat survey untuk jalankan leveling survey sesudah itu automatic level ini bermanfaat untuk menentukan sebuah jarak horizontal ataupun jarak vertikal suatu titik tertentu. Agar supaya automatic level ini sanggup di fungsikan bersama terlampau baik. Oleh karena itu dibutuhkan subah aksesori tambahan yakni tripod. Tripod Survey ini bertugas untuk meletakan automatic level berikut dan sbuah rod yang berdiri di titik yang bermanfaat sebagai titik sasaran yang akan di teropong atau di anggapan hasil jarak horizontal maupun vertikal.

Fitur Unggulan Dati Waterpass / Automatic Level / Auto Level Topcon ATB3

  • 28x Magnifications
  • Rapid, Accurate, and Stable Automatic Compensation
  • Ultra-Short 20cm (7.9 in.) Focusing
  • All-Weather Dependability
  • Clampless, Endless Fine Horizontal Adjustments

Rapid, Stable, and Durable Compensator
The compensator of the AT-B series incorporates four suspension wires made of super-high-tensile metal that features minimal thermal expansion coefficient, providing unmatched durability and accuracy. Finely tuned magnetic damping system quickly levels and stabilizes the line of sight despite the fine vibrations present when working near heavy equipment or busy roadways.

20cm (7.9 in.) – Ultra-Short Minimum Focus
The AT-B series can focus on objects at 20cm (7.9 in.) in front of the telescope. This feature dramatically facilitates the works in confined spaces.

Horizontal Circle for Angle Measurement
Horizontal angles can be directly read in 1° or 1gon units. Free rotation feature allows you to read any angle from zero.

All-Weather Dependability
With the IPX6 rating, the instrument is protected against powerful water jets from all directions, meaning the AT-B series withstands a sudden shower or torrential rainfall.
The advanced protection design also deters clouding or condensation inside the telescope.

Ultimate Environmental Performance and Durability
TOPCON has been performing environmental tests against a set of expected job site conditions to certify the products for long term use. The AT-B Series has been tested by special inspection equipment for complete waterproofness. The AT-B Series also has the highest environmental performance and durability in TOPCON’s Auto Level history, proven by tests against temperature, humidity, vibration and drop.

Water Proof Test (IPX6)
The AT-B Series is proven to withstand powerful water jets from all directions without any submergence inside the unit.

Cold and Heat Resistance Test
The AT-B Series has passed operating temperature tests from -20 to +50 degree.

Durability Test
The AT-B Series has passed strict durability tests including rotation of the leveling foot screw, Focusing knob and Horizontal fine motor screw.

Spesifikasi Waterpass / Automatic Level /Auto Level Topcon ATB3

Telescope Length 215mm (8.46in.) 214mm (8.42in.)

Magnification 32X 28X 24X

Objective Aperture 42mm (1.65 in.) 36mm (1.42 in.) 32mm (1.26 in.)

Resolving Power 3″ 3.5” 4”

Field of View (at 100m/328ft.) 1°20′ (2.3m / 7.5ft.) 1°25’ (2.5m / 8.2ft.)

Minimum Focus 0.2m (7.9 in.) from end of telescope 0.3m (1ft.) from instrument center

Image Erect Stadia Constant 0

Stadia Ratio 100

Focusing Knob 2-speed 1-speed

Sighting Aid Peep Sight Gun Sight

Accuracy (1km double run leveling)

Without Micrometer 0.7mm (0.03 in.) 1.5mm (0.06 in.) 2.0mm (0.08 in.)

With Micrometer 0.5mm (0.02 in.) n/a

Compensator Type Pendulum compensator with magnetic damping system

Setting Accuracy 0.3” 0.5″

Working Range ±15′

Circular Level Sensitivity 10′ / 2mm

Horizontal Circle Diameter 103mm (4.1in.) 99mm (3.9in.)

Minimum Division 1°/ 1gon

General Water Resistance IPX6 (IEC 60529:2001)

Operating Temperature -20 to +50ºC (-4 to +122°F)

Size Width 130mm (5.12in.) 122mm (4.8in.)

Length 215mm (8.46in.) 214mm (8.4in.)

Height 140mm (5.51in.)

Weight 1.85kg (4.1lbs.) 1.5kg (3.3lbs.)

Download Brosur Spesifikasi Jual Waterpass / Automatic Level / Auto Level TOPCON ATB3 Lengkapnya >> KLIK DISINI <<

Jual Waterpass / Automatic Level / Auto Level TOPCON ATB3 dengan Pembesaran 28x dengan harga murah, diskon dan cari produk TOPCON lainnya dari kelompok Automatic Level. Gratis ongkos pengiriman guna wilayah Jakarta dan bisa dikirim ke semua Indonesia. Dapatkan selalu di toko online, melakukan pembelian barang online gampang dan aman.
